Riteway Brake Dies
The Pinnacle of Precision Tooling
European Style Tooling
Quick Release Clamping Style
Standard Safety Tang
Featured Benefits
-
All punches come standard with a safety tang
-
Reduced set-up time
-
All punches and dies are manufactured from our industry proven Dura-Tuf alloy steel. High quality chrome-carbon die steel.
-
All punches can be flame hardened to 55-57 Rockwell C-Scale.
-
All tools are precision planned to a tolerance in critical areas of +/- .002.
-
To maintain total quality control and a quick delivery time, all of our tools are manufactured and stocked in our own sate of the art press brake tooling facility.
Sectionalized Punch Widths-835MM
Sectionalized Die Widths-835MM
3.397" (100mm), 11.811" (300mm), .394"(10mm), .591" (15mm), .787" (20mm), 1.575" (40mm), 1.969" (50mm), 7.874" (200mm), 3.937" (100mm)
3.397" (100mm), .394"(10mm), .591" (15mm), .787" (20mm), 1.575" (40mm), 1.969" (50mm), 15.75" (400mm), 7.874" (200mm),
88 Degree punch - for bending medium sheets. 16 ga. - 3/16"
45 Degree punch - for bending thin sheets to 45 degree angle. Up to and including 14 ga.
90 Degree punch - for bending thin sheets. Up to and including 14 ga.
Special adapter for Flattening & Radius punches
Radius Punch
Example of a curling die modified for European brake.

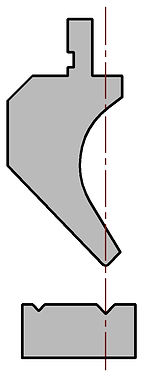

90 Degree gooseneck for bending thin sheets up to and including 14 ga. deep return.
90 Degree 2 vee die
1/4" x 20 ga. capacity & 3/8" x 18 ga. capacity.
90 Degree gooseneck for bending thin sheets up to and including 14 ga. deep return.
90 Degree 2 vee die
5/16" x 18 ga. capacity & 1/2" x 16 ga. capacity.
88 Degree gooseneck for bending medium sheets 16 ga. through 3/16" deep return.
88 Degree vee die
1/2" x 16 ga capacity &
3/4" x 12 ga. capacity.
88 Degree gooseneck for bending medium sheets 16 ga. through 3/16" deeper return.
88 Degree vee die
5/8" x 14 ga. capacity &
1" x 10 ga. capacity.
Offset
60 Degree punch - for bending heavy plates,
3/16" - 3/4"
85 Degree single vee die
4" opening
1/2" capacity
Flattening Dies
